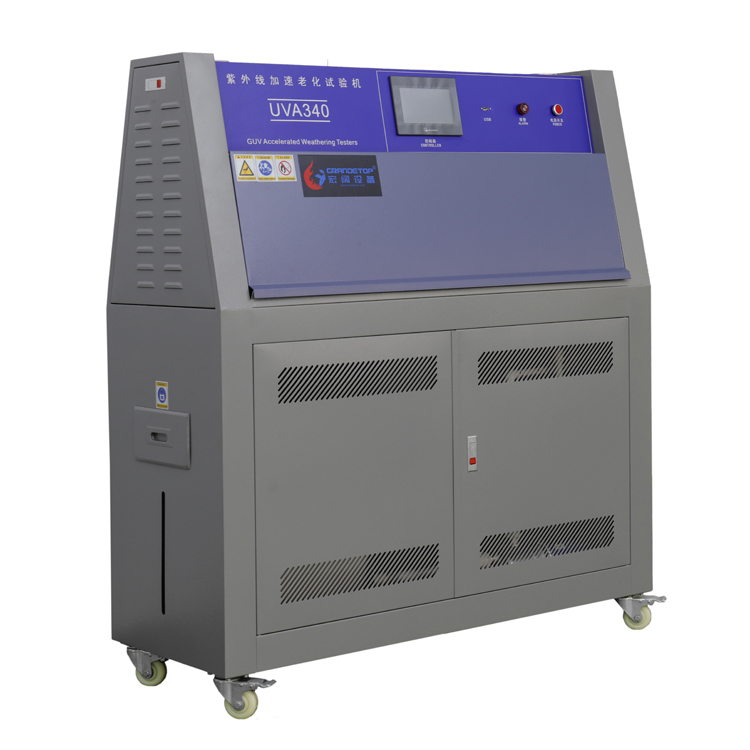

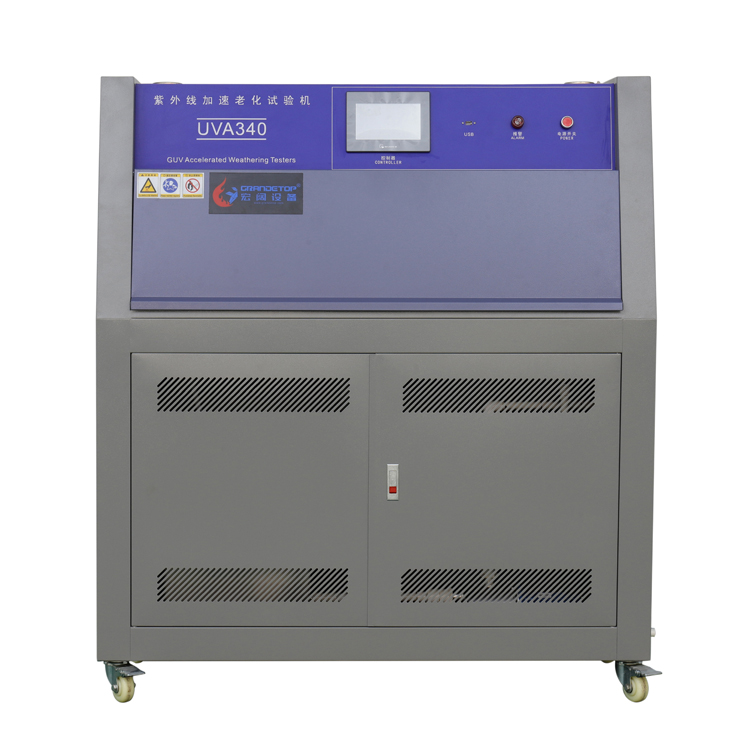

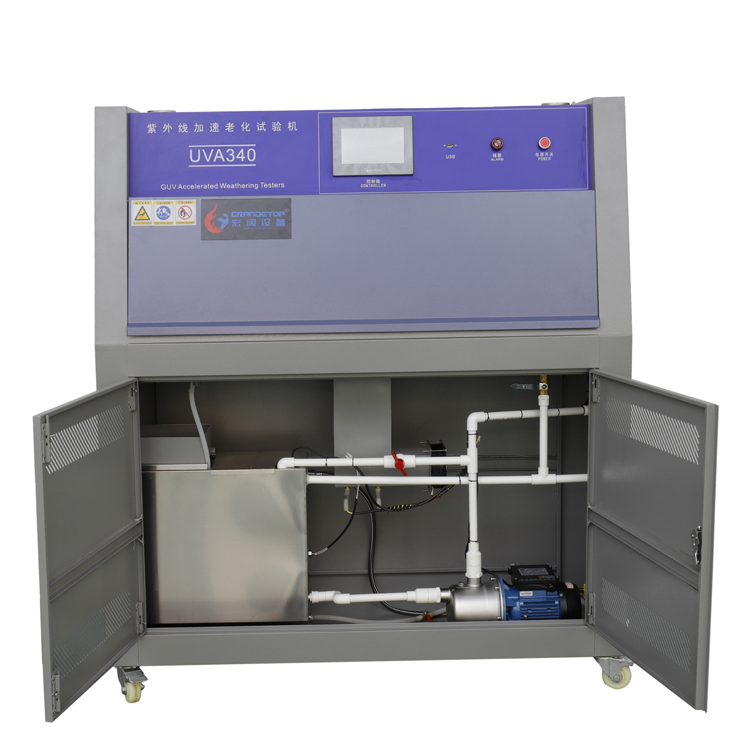

UV Accelerated Weathering Test Chamber

The UV Accelerated Weathering Test Chamber simulates the effect of sunlight with fluorescent ultraviolet(UV) lamps and carry out these circles automatically. While it simulates rain and dew with condensing humidity or waterspray. In a few days or weeks,the UV can reproduce the damage that occurs over months or years outdoors.

информация о продукте

The UV aging test chamber simulates the effect of sunlight with fluorescent ultraviolet(UV) lamps and carry out these circles automatically. While it simulates rain and dew with condensing humidity or waterspray. In a few days or weeks,the UV can reproduce the damage that occurs over months or years outdoors. The damages include fading, color change, chalking, cracking, crazing, embrittlement, strength loss.,etc. The test data can help you to select the new materials or improve the performance of materials. Chamber cover introduces the two-way flip type for easy opening and closing. Test specimen and the shelf constitute the trapezidal inner wall of the chamber.


Experimental Methods:

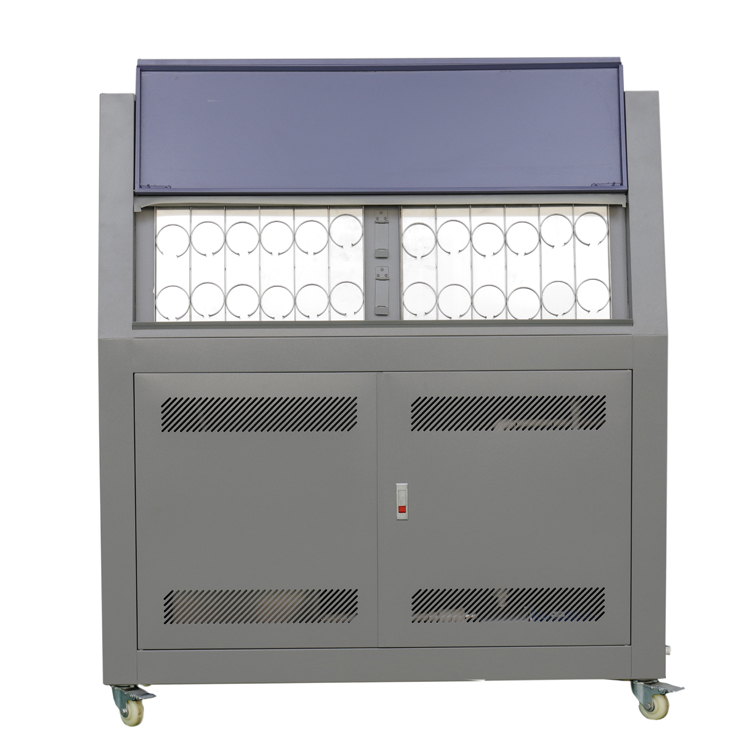

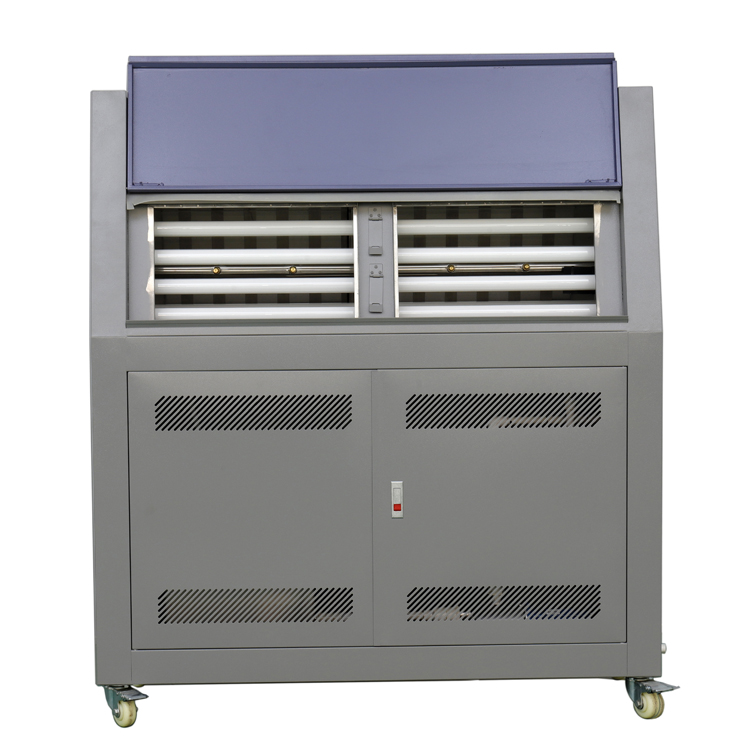

Fix the samples on shelves and face the fluorescent lamp.There are not enough samples for selves,please fill it with black board to make sure the test chamber sealed.Testing temperature:can adopt 50,60 or 70℃.Recommend 60℃ for test,temperature of condensation is 50°C,temperature fluctuation is ±3°C.The cycle of condensation includes two cycles:1, 4 hour UV lamp and 4 hour condensation; 2, 8 hour UV lamp and 4 hour condensation.


Corresponding Standard:

ASTM G154-00A Accelerated aging test

GB/T16422.3-1997 Plastic exposure to sunlight test

ISO-4892,ASTM-4587,D4799,SAE-J2020


Technical parameters:


Model No  GUV-178-1GUV-178-2GUV-178-3GUV-150-1GUV-150-2 Anti-yellowing bulbGUV-230
Working room(L)StandardStandardStandard150 Square150 Square230 Square
Inner chamber size(mm)W*H*D


500*500*600700*300*1100
Exterior chamber size(mm)W*H*D1370*530 *13501050*970*1750
Packaging volume(CBM)3332.52.53.5
G.W.(KGs)136136136250250300
PerformanceExposure

Condensation

Irradiance display


adjustadble Irradiance

Spray
RecorderOptional
CR-10 Calibration RadiometerOptional
Temperature rangeRT+10℃~70℃
Humidity range≥95%RH
UV temperature+40~+85℃+40~+95℃+40~+85℃+40~+85℃
Condensation temperature
+40~+60℃+40~+60℃+40~+60℃
Test capacity48pieces(75×150mm)or (75*300mm) ,can be customized to your nonstandard request.Customized to your nonstandard request

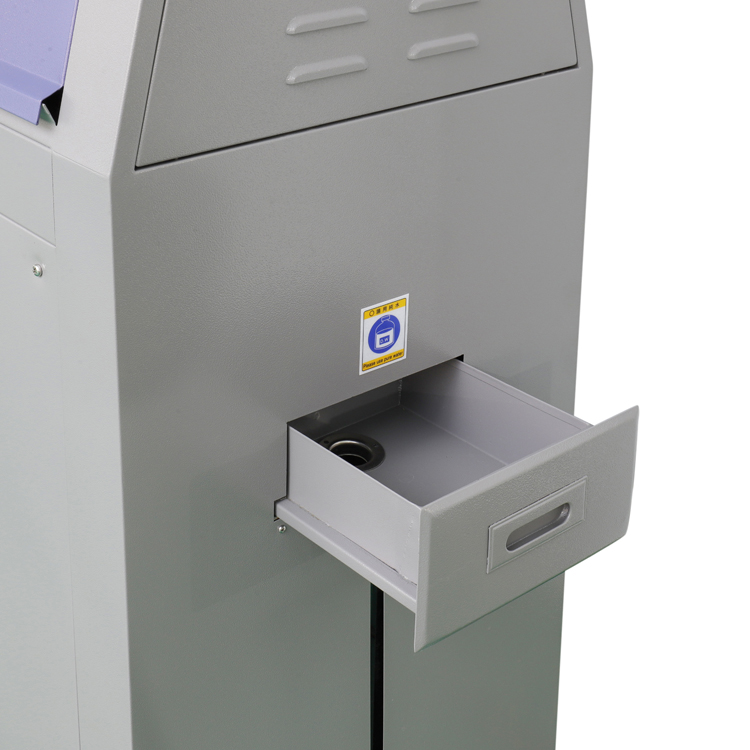

Water source & consumption
Purified water or distilled water 8L/day
Required QTY of UV lamps each year

Approx 24 pcs/year


UV lamp optionalOptional 4pcsOptional 8pcs

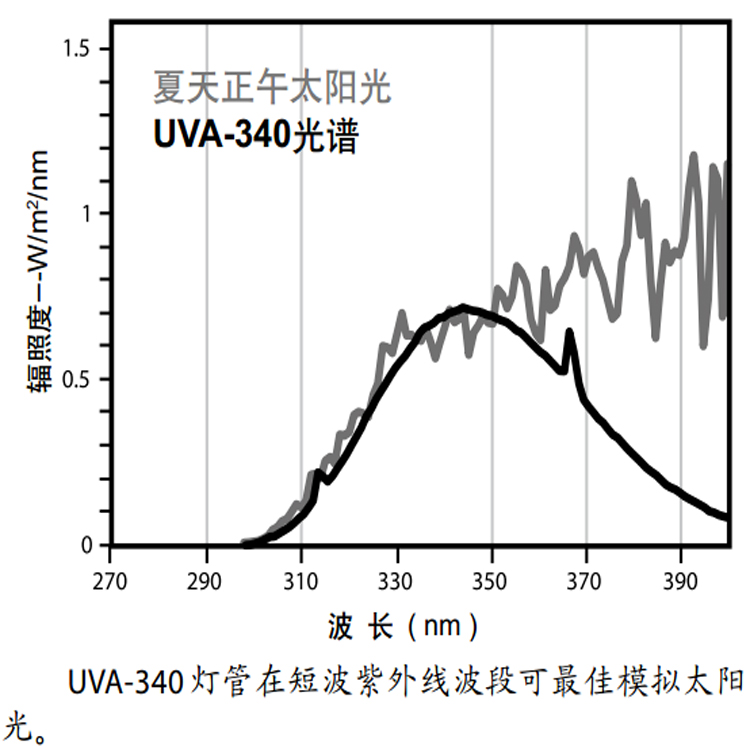

Model of UV lampUVB313L、UVA340 American original imported UV313L,UVA340
RemarksRegarding to UV lamps,we provide Q-labUVA340 and UVB313,in principle,UVB-313 has more advantage of accelerating aging,but UVB-340 takes more advantage of weather-proof.So it depends on your requests to make the choice.
Power supplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Power(KW)    1.8    1.51.81.81.81.8
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
