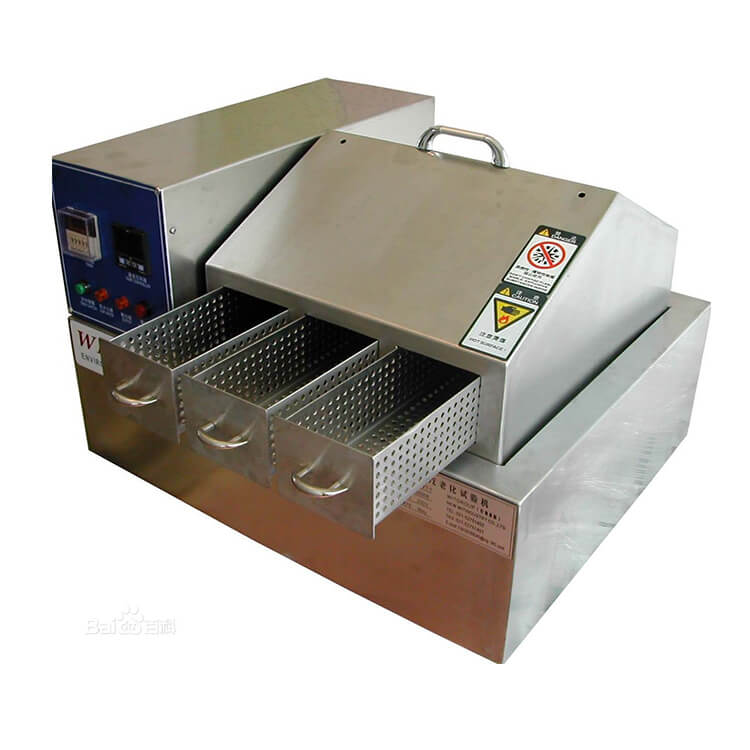

Steam Aging Test Chamber
  • Steam Aging Test Chamber
  • Steam Aging Test Chamber
Steam Aging Test ChamberSteam Aging Test Chamber

Steam Aging Test Chamber

Steam aging test chamber can simulate the environment of high temperature high humidity, which is used to detect the resistance ability of various products such as metal plating, plastic plating, metal products, electronic appliances, electronic hardware, chemical coating, painting, auto parts, bicycle, sanitary ware, plumbing equipment, screw, fasteners, magnetic materials, locks, metal furniture, sports equipment and other industries under the extremely high temperature high moisture climate, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.

информация о продукте

Steam aging test chamber can simulate the environment of high temperature high humidity, which is used to detect the resistance ability of various products such as metal plating, plastic plating, metal products, electronic appliances, electronic hardware, chemical coating, painting, auto parts, bicycle, sanitary ware, plumbing equipment, screw, fasteners, magnetic materials, locks, metal furniture, sports equipment and other industries under the extremely high temperature high moisture climate, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.


Specifications:

Hot moisture aging chamber

1. We are manufacturer, offer fair price for you.

2. Digital controller, easy operation.

3. High quality, quick delivery.

4. Free parts warranty for 12 months.


Features:

1 Stainless steel SUS#304 made, easy setting operation.
2 Microcomputer digital LED. Control with time function.
3 Max. Setting time is 9990 Hrs.
4 Safety device: including multi over-temperature protection and power off when out of water.
5 Test the temperature of spare parts, connector passive component and Semiconductor.

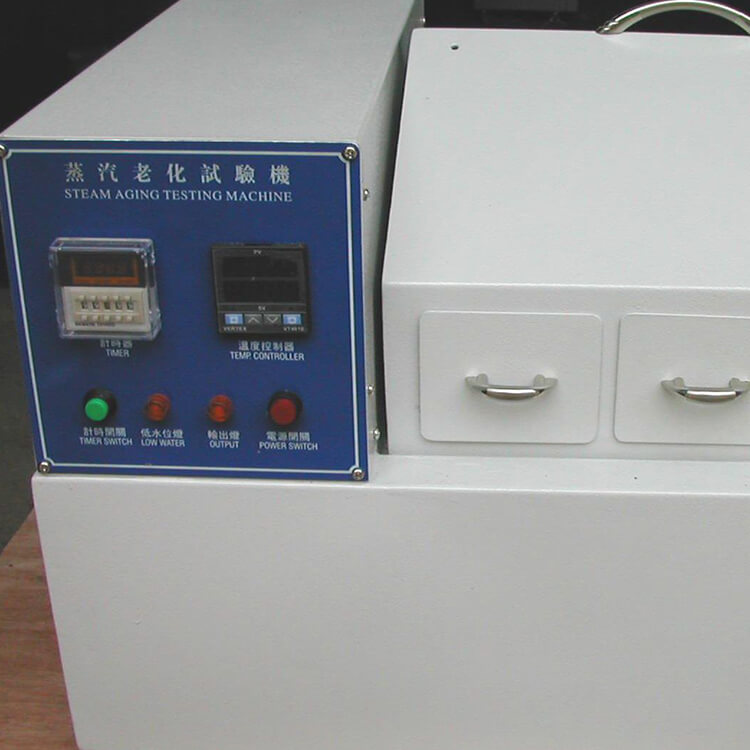

6 Temperature controller: Digital electronic indicators + S. S. R. With P. I. D & timer(Max. 9990 Hrs).


Technical parameters:


Model NoGST-3GST-4
Test basket.W×H×D(mm)100*540*260,3 sets100*540*260,4 sets
External Dim.W×H×D(mm)610*540*340760*540*340
PerformanceTemperature range RT ~ 100℃
Temp. fluctuation±0.3℃
Temp.Uniformity±0.1℃
Heating up time45Min
MaterialExterior chamber materiaSUS#304 stainless steel plate
Inner chamber materiaSUS#304 stainless steel plate
Insulation MaterialPU Fiberglass wool
SystemHeating SystemChrome Steel Strip Wire Heater
Controlling systemDigital electronic indicators controller+S.S.R.With P.I.D & timer max 9,999mins
Safety protection deviceOverheating prevention pretector,Water shortage protector, steam outlet hole, no fuse breaker
Power supplyAC 1Ψ 220V  60/50Hz
1.12.5
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
