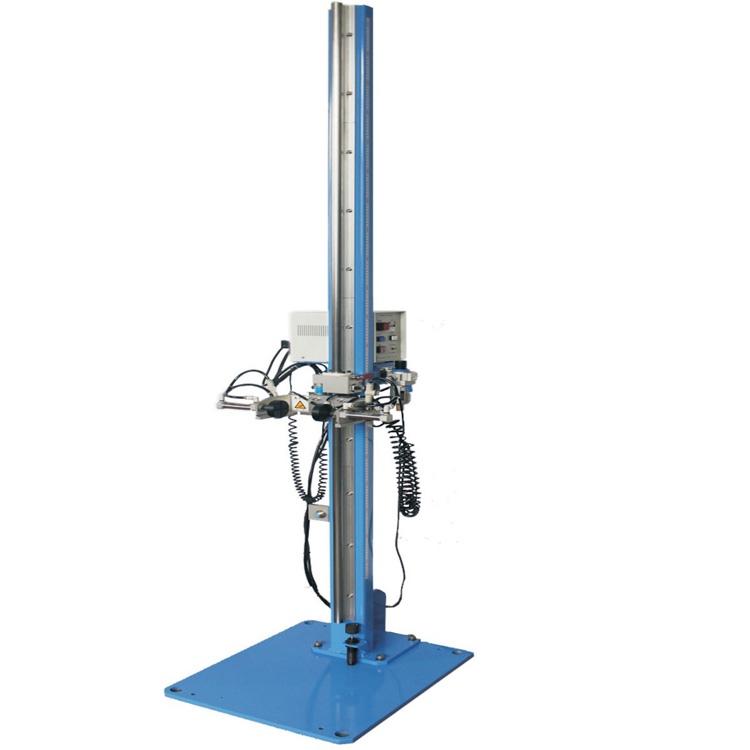

GDP-2 provide drop impact test for smart phones, cell phones and other mobile gadgets, The specimen holding system can keep the dropping posture, enable to provide tests superior in reproducibility.
■Features
●Keep the dropping posture with pneumatic pen cylinder. The impact point can be controlled easily;
●The drop height can be settled flexibly by scale, and the specimen holding system is fixed firmly with the electromagnetic holder;
●Safety design-the electromagnetic holder never release the specimen holding system till it’s energized.
■Technical Parameters:
| Model | GDP-2 | GDP-275 |
| Payload Capacity(kg) | 2 | 7.5 |
| Drop Height(mm) | 250~2000 | 250~2000 |
| Drop Height Setting | Manual Scale and setting pointer | Automatic Scale and setting pointer |
| Holding/Releasing Specimen | Pneumatic per cylinder | Pneumatic per cylinder |
| Package Size(mm) | 100(W)×200(L) | 450(W)×450(L) |
| Machine Size(mm) | 500×600×2382 | 900×1100×2380 |
| Machine Weight(kg) | 85 | 430 |
| Power Supply | AC220V 50Hz | AC220V 50Hz |
| Supply Air Pressure | 5kg/C㎡ | 5kg/C㎡ |
| Applicable Standards | JIS C 60068-0-31, IEC 60068-2-31 | JIS C 60068-0-31, IEC 60068-2-31 |
