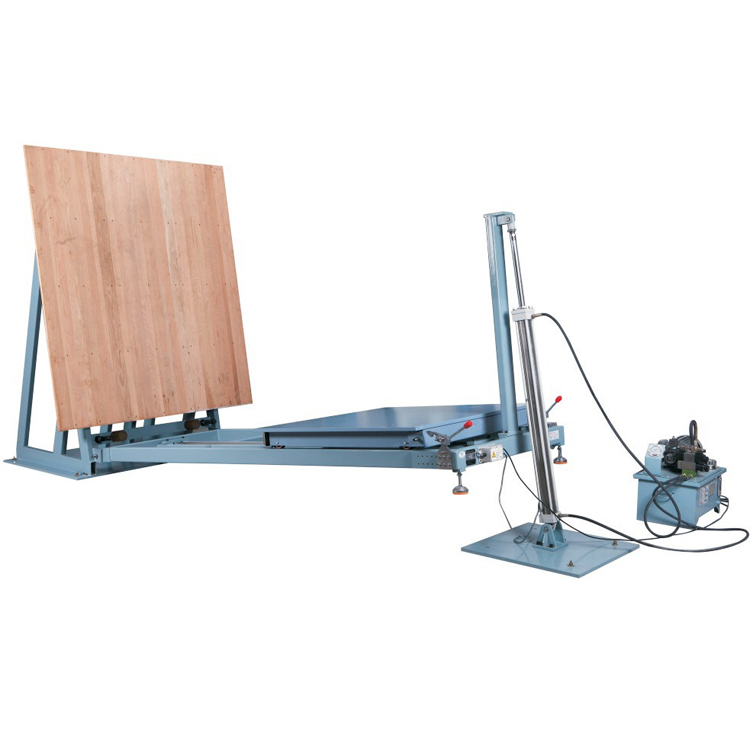

Incline impact tester is mainly used to simulate the impact and damage resistance of product packaging in a real environment, such as handling, loading and unloading, impact during shifting from one cabin to another and impact resulted from emergency brake during transport. Incline shock tester satisfies industrial standards for packaging, such as ASTM,ISTA,ISO, and MIL-STD.
■ Features
●The system is operated pneumatically, fast operation, safe and reliable;
●The angle between the guide surface and the horizontal level is 10°;
●Perfect protection device and safety interlock device to ensure the safety of the operator;
●Accept special customization, additional installation speed measuring device, provide accurate impact velocity measurement.
| Model | GIPT-300 | GIPT-500 |
| Max. payload | 300KG | 500KG |
| Max. Impact Velocity | 2.1m/s | |
| Tolerance of Shock Distance | ±3% | |
| Max. Size of Specimen | 1200×1200×1600mm | |
| Sliding trolley | 600×550×2500mm | |
| Impact base size | 1200×1200mm | |
| Power | 3Ф 380v 50/60Hz | |
| Standards | JB/T6868-93 ISO2248-1972(E) | |
