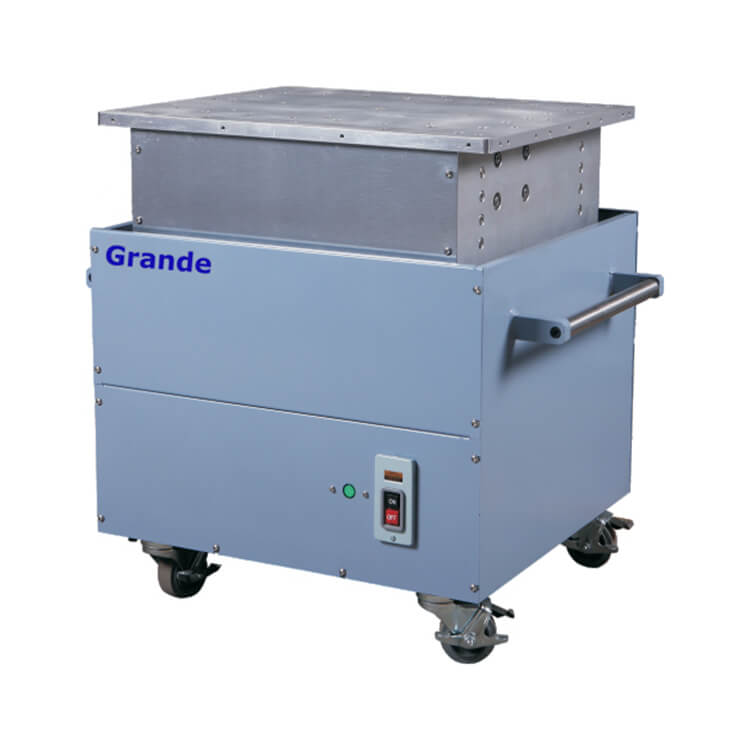

Mechanical vibration tester simulates vibration during transport for electronic products, components and spare pats, mechanical and electrical products, instrumentation, etc. Its vibration tests comply to the GB、UL，IEC and other standards.
■Features
●Apply centrifugal excitation, low mechanical noise;
●Adopts synchronous reverse movement, even platform;
●Stepless amplitude adjustment, satisfies test requirements of different products;

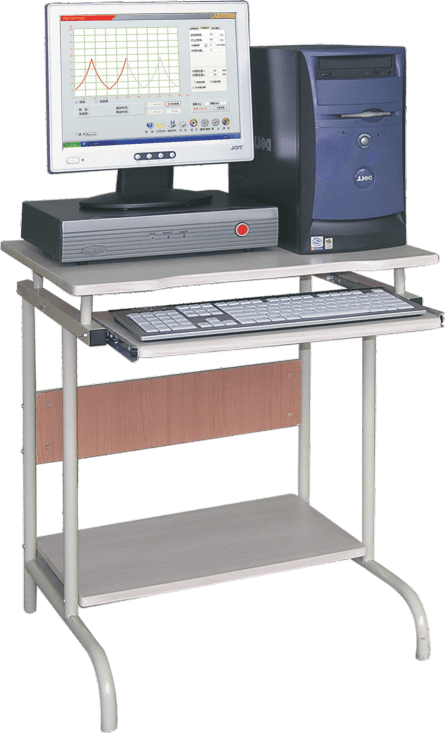

●Windows standard control interface in Chinese and English, printable reports, simple operation ;
●Comes with damping airbag(caster), on need of special foundation.
| Model | GMV3000 | GMV8000 |
| Table Size L x W | 6000×500mm | 1000×800mm |
| Frequency Range | 5~100Hz | 10~60Hz |
| Amplitude Range (mmp-p) | 0~3mmp-p | 0~2.6mmp-p |
| Acceleration Range | 0~11G | 0~11G |
| Max. Payload(kg) | 130 | 300 |
| Control Interface | （compatible interface）IBM PC Serial port Rs232 9P/USB port | |
| Test Method | Fixed frequency, sweep frequency(linear/logarithm), multi-stage random | |
| Waveform | Sine Wave | |
| Vibration Direction | Vertical | |
| Power Supply | AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz | |
| Size(mm) | 750×550×690 | 1000×800×655 |
| Weight(kg) | 250 | 500 |
