Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
  • Xenon Water-Cooling Aging Test Chamber
Xenon Water-Cooling Aging Test ChamberXenon Water-Cooling Aging Test ChamberXenon Water-Cooling Aging Test ChamberXenon Water-Cooling Aging Test ChamberXenon Water-Cooling Aging Test ChamberXenon Water-Cooling Aging Test ChamberXenon Water-Cooling Aging Test ChamberXenon Water-Cooling Aging Test ChamberXenon Water-Cooling Aging Test Chamber

Xenon Water-Cooling Aging Test Chamber

Xenon Water-Cooling Aging Test Chamber,is designed to simulate full sunlight spectrum to produce destructive effect on material.  The chamber cansimulates the light, temperature, rainfall (spray) and condensing (humidity), is mainly used to test aging resistance of products or spare parts affected by natural environment, it tests the material aging-resistant performance in sunlight, rain, temperature and humidity, you can know the products quality at a very short time, such as the depigmentation, transmissivity, gloss, peeling, hard, softening.

Programmable Xenon Lamp Aging chamber

информация о продукте

Xenon Water-Cooling Aging Test Chamber,is designed to simulate full sunlight spectrum to produce destructive effect on material.  The chamber cansimulates the light, temperature, rainfall (spray) and condensing (humidity), is mainly used to test aging resistance of products or spare parts affected by natural environment, it tests the material aging-resistant performance in sunlight, rain, temperature and humidity, you can know the products quality at a very short time, such as the depigmentation, transmissivity, gloss, peeling, hard, softening.


Specifications:

Xenon arc test chamber

1. We are manufacturer, offer best price for you.

2. Major parts adopt imported brands.

3. LCD touch screen controller, easy operation.

4. Free parts warranty for 12 months.


Features:

1. Equipped with black-board temperature meter to adjust temperature inside the chamber.

2. Xenon lighting time control.

3. Spraying period control.

4. Water recycling.

5. Automatic constancy of water temperature (cooling of recycling water)

6. Spraying, lighting, temperature, humidity and rotating platform can be controlled separately.

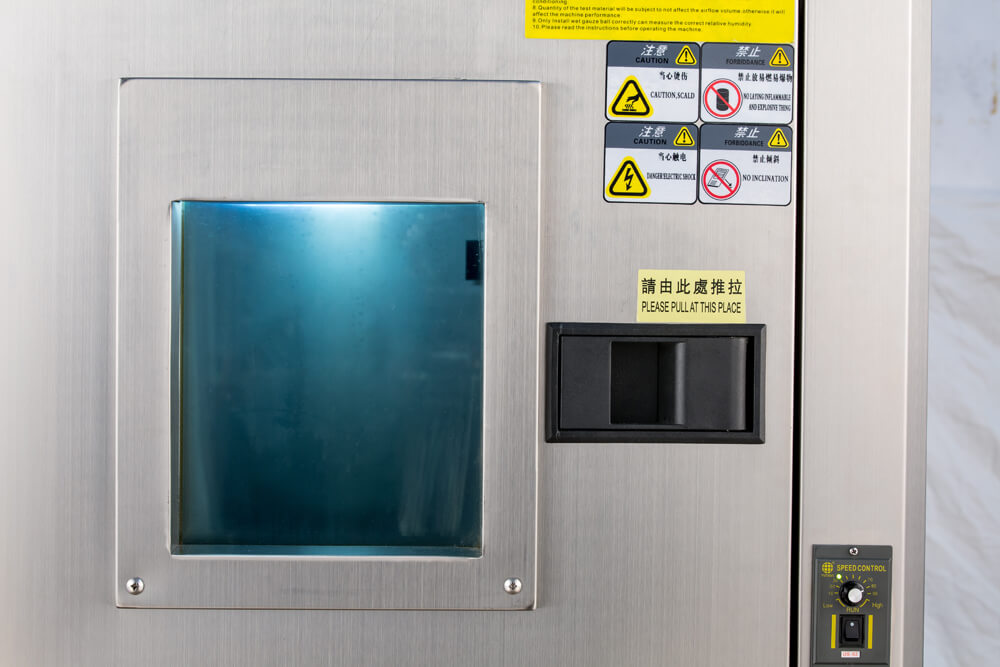

7. Equipped with viewing window.

8. Water shortage / over-temperature alarm.

9. Equipped with irradiance meter to show current light intensity inside the chamber.

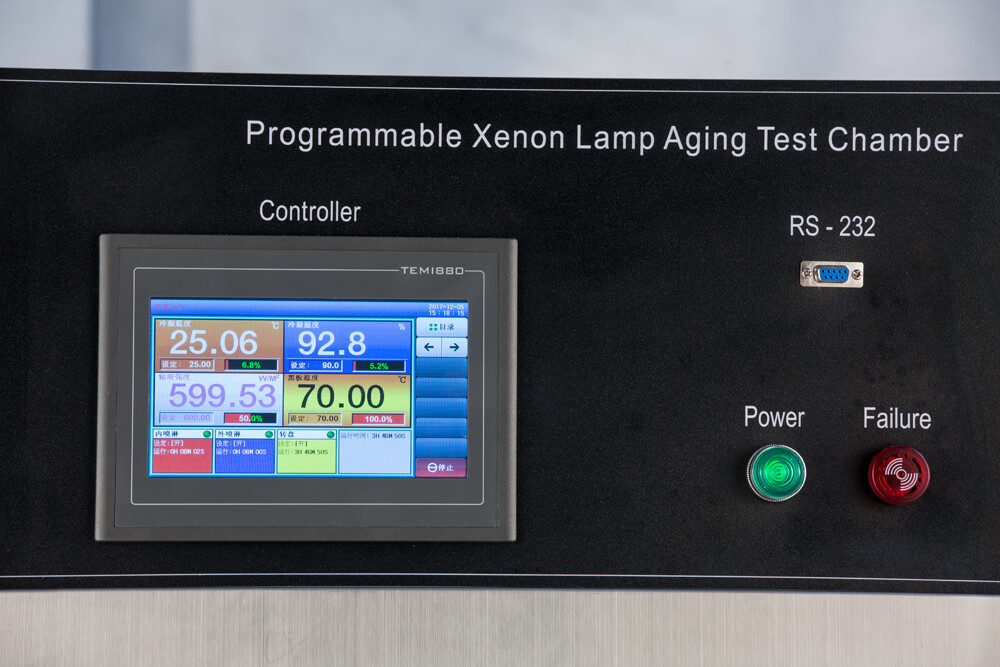

10.LCD Touch Screen Controller,  programmable of temperature, moisture, sun and rain

11.Humidity: 50-98%RH

12.Temperature: RT to 80C (-20 to 80C as option)

13.Blackboard Temperature: 55-100C

14.Light Source: Xenon Lamp

15.Spray Nozzle: 2mm


Technical parameters:

Model NoGXWT-080GXWT-150GXWT-225GXWT-408GXWT-800GXWT-1000
Working room(L)801502254088001000
Inner chamber size(mm)W*H*D450*500*450500*600*500500*600*750600*850*8001000*1000*8001000*1000*1000
Exterior chamber size(mm)W*H*D900*900*1500900*920*1500950*980*12501150*1180*15501250*1260*17801440*1280*2060
Packaging volume(CBM)33.54.55.567
G.W.(KGs)300320350400600700
Temperature rangeRT+10℃~90℃
PerformanceTemperature rangeRT+10℃~70℃
Humidity range50% RH~98%RH
Rainfall time1~9999h/59min adjustable
Rainfall cycle1~240 Min/59min adjustable
Xenon lamp power(Kw)2.2 KW air cooling type,3.3,4.5 or 6KW water cooling type(Lifetime:500 hours)
Accuracy range±0.1℃,±1%RH
MaterialExterior chamber materiaStainless steel plate+ powder coated
Inner chamber materiaSUS#304 stainless steel plate
Material of sample holderSUS#304 Automatic rotary rack
Door insulationHigh temperature aging silicone rubber door seal
SystemTemperature controlImported weinview color touch screen and PLC control module Siemens Germany
Temperature and humidity sensorPlatinum resistance.PT100Ω/MV
Time controllerProgrammable time controller
Heating SystemNichrome heater
Humidifying systemStainless steel humidifier
Black board tempMetal black board thermometer
Water supplyAuto water filling system
Circulation systemQuiet motor and fan
Heating SystemSUS#304 stainless steel high-speed heater
Controlling systemDigital electronic indicators+S.S.R.+PID
AccessoriesNon-browning glass window 1 set,Rack 2pcs,Xenon lamp 2pcs
Safety protection deviceLeakage, short circuit, over temperature, water shortage,
motor overheating, over current protection
Power supplyAC 3Ψ380V 60/50Hz
Power(KW)7101212.51516
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
